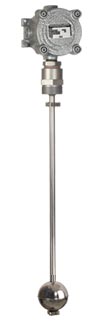

Float Type Level Transmitter

Principle of Operation

This is a level transmitter – employing magnet embedded float. The magnet embedded floats bouys up alongwith the level rise and it cuts out a series of resistors kept sealed inside a stem. The output which is current signal of 4-20 mA is transmitted to remote area i.e. say pump room or control room.
