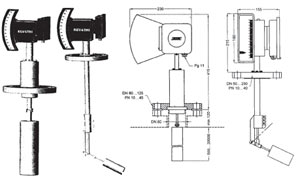

Displacer Type Level Transmitter (Mounting Side & Top)


Revathi-Helios Level Transmitter
Principle of Operation

Revathi-Helios Level Transmitters are having 2 systems i.e. The immersed body displacer and high grade instrument combination with electronic angle transmitter. The rotation of the extended pointer shafts picked up contactless by a capacitive bridge amplified and converted with an impressed standard signal. In combination with a intrinsically safe power pack the transmitter satisfies the explosion safety regulation may be employed in the rooms. where there is an explosion hazard.

Material specification

Customized suiting to the service (fluid) and temperature,
Available in SS 304/ SS 316/ pp/ CS etc
