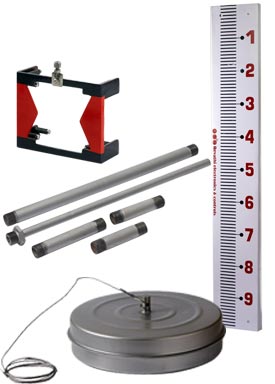

Board & Float Type Level Transmitter (With Or Without Switches)

Principle of Operation

When the level builds up inside the tank the float moves up and the counter weight moves down across a scale indicating the level inside the tank.

Operation of the switch: The counter weight or the indicator which carries a magnet operates the magnetic switch which is kept inside the flameproof or weatherproof enclosure.

Operation of the transmitter:
The rotating pulley rotates a precision wire wound potentiometer and the resistance value varies due to this movement. The change in resistance value which is directly related to the measurement of level in mm, transmitted to the control room or local control panel as 4-20 mA output.

Material specification

Customized suiting to the service (fluid) and temperature,
Available in SS 304/ SS 316/ pp/ CS etc
