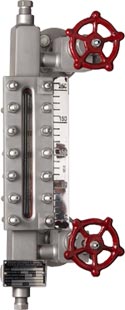

Reflex Type Level Gauge

Principle of Operation

The liquid level is distinguished by the different brightness of the reflex glass is the media or in the stream/empty space. In fact where is liquid in contact with the glass, the incidental light is refracted to inside of the gauge and absorbed. Due to the above fact we get a black color indicating the level of liquid. But with the steam space above the liquid media appears very bright indicating the demarcation between liquid and empty space.

Material specification

Customized suiting to the service (fluid) and temperature,
Available in SS 304/ SS 316/ pp/ CS etc
