Flow Indicators / Switches

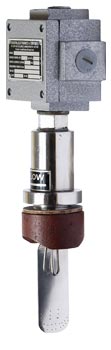

C] Flow Switch Paddle / Vane Type
Principle of Operation

Liquid flows in either direction deflects the paddle, which with a pivoting cam moves a permanent magnet equipped Teflon shuttle along the unit stem. The magnet actuates the hermetically sealed switch within the stem to operate remote alarm or indicator.

Material specification

Customized suiting to the service (fluid) and temperature,
Available in SS 304/ SS 316 / CS etc.
