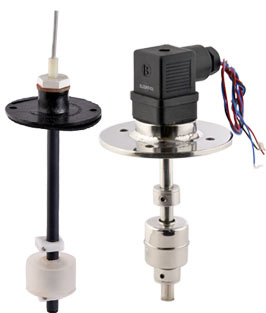

Economical Top Mounted Float Operated Level Switch Used By Gen Set Manufacturers

Principle of Operation

When the level rises above the actuation point the float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The closure of the switch can operate a contactor or relay to indicate the level rise or decrease.


Material specification

Material of wetted parts: SS 316/PP
Material of the flange: CS

Mounting flange dimensions: OD-90, PCD-75, No of holes-4 of 8 Ø,
  Thickness -6.0mm, central hole- 55 Ø id
  Stem length up to 550mm long
